KPC SERIES Three-Jaw Ultra High Precision Air Chucks

  Kitagawa KPC chucks grip inner and outer work diameters with accuracy to 0.00004" T.I.R. for repeatability. High speed of 6000 RPM (KPC803C, KPC43C type) and accurate chucking will ensure precision manufacturing.

Special Features

  • Superior Chucking Precision
  • High Speed and Accuracy
  • Both Inside and Outside Chucking
  • Coolant Through the Center of Chuck (With Option Air Tube)
  • Air Cylinder Built-in, Gripping Force Is Adjustable
  • Both Aluminum Soft Jaw and Steel Soft Jaw Are Standard Equipment

SPECIFICATIONS

(1) Weight is without soft top jaw.

MODEL

UNIT

KPC803C-
KPC43C-
KPC43C-
KPC63C-
100P
 100EP
 100EPI
048P
 048EP
 048EPI
100P
 100EP
 100EPI
100P
 100EP
 100EPI
Repeatability
in.
0.0001
 0.00005
 0.00004
0.0001
 0.00005
 0.00004
0.0001
 0.00005
 0.00004
0.0001
 0.00005
 0.00004
Jaw Stroke (Diameter)
in.
0.098
0.047
0.098
0.098
Outer Gripping Range
in.
0.118 ~ 2.756
0.138 ~ 3.425
0.118 ~ 3.425
0.118 ~ 5.315
Inner Gripping Range
in.
0.236 ~ 3.110
0.236 ~ 3.898
0.236 ~ 3.898
0.236 ~ 5.866
Max. Gripping Force at Air Pressure 7kgf/cm 2
kN (kgf)
4.3 (438)
7.6 (775)
7.6 (775)
11.6 (1183)
Max. Speed
rpm
6000
6000
6000
4000
Weight (1)
lbs.
4
5
5
14

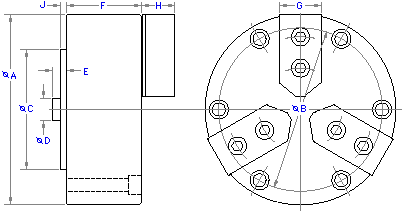

DIMENSIONS (Dimensions in Inches)


MODEL KPC803C100 KPC43C048 KPC43C100 KPC63C100
A 3.150 3.937 3.937 5.906
B 2.756 3.500 3.500 5.346
C (H6) 2.362 3.250 3.250 4.920
D 0.811 0.811 0.811 0.811
E max. 0.669 min. 0.386 max. 0.709 min. 0.571 max. 0.709 min. 0.425 max. 0.693 min. 0.409
F 2.165 1.988 2.165 2.205
G 0.787 0.787 0.787 0.984
H 0.748 0.748 0.748 0.748
J 0.079 0.079 0.079 0.079
Jaw Mounting Bolts 3x1-M5x16 3x2-M5x16 3x2-M5x16 3x4-M5x16
Mounting Bolts 3-M5x60 6-M5x55 6-M5x60 6-M6x65


KPC SERIES Three-Jaw Ultra High Precision Air Chuck

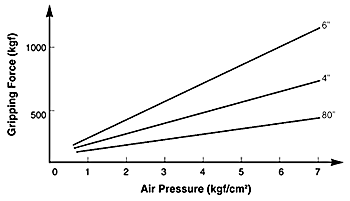

Relation of Air-Pressure/Gripping Force
