QB300 SERIES Quick Jaw-Change Chucks

Three-jaw wedge style power chucks slash downtime and maximize productivity through unique quick change locking mechanism. Jaws can be changed in as little as 30 seconds while delivering consistent 0.0008" accuracy! QB300 Series Quick Jaw-Change Chucks do not require long stroke cylinders and are fully interchangeable with most power chucks.

Special Features

  • Large Thru-Hole
  • 30 Second Jaw-Change
  • High Accuracy and High Endurance
  • Compact and Lightweight
  • Direct Replacement for Most Power Chucks
  • Long Stroke Cylinder NOT Required
  • High Speed
  • Expensive Base Jaws NOT Required

Model QB300 Series Chucks are manufactured from high grade alloy steel. All sliding surfaces are hardened and ground to assure consistent accuracy and performance.

Lubrication nipple in each base jaw.

Mounting: Direct mounting to fit ASA B5.9 type A (interchangeable with DIN 55026).

Standard Equipment: Chuck assembled with adapter, chuck mounting bolts, soft top jaws, wrench, draw nut wrench.


SPECIFICATIONS

MODEL UNIT QB306 QB308 QB310 QB312 QB315
Jaw Stroke (Diameter) in. 0.217 0.291 0.346 0.417 0.417
Plunger Stroke in. 0.472 0.630 0.748 0.906 0.906
Max. Draw Bar Pull Force kN (kgf) 22 (2243) 34 (3467) 43 (4385) 55 (5608) 71 (7240)
Max. Gripping Force kN (kgf) 57 (5812) 84 (8565) 111 (11319) 144 (14684) 180 (18355)
Gripping Force at Max. Speed lbs. 4267 6289 8311 11013 13460
Max. Speed rpm 5500 4500 4000 3000 2300
Net Weight lbs. 28 51 77 123 264
GD 2 kg.m 2 .058 .173 .318 .745 2.273
Matching Cylinder S1246 S1552 S1875 S2091 F2511H
Min. Gripping O.D. in. 0.394 0.591 0.866 0.866 2.165
Max. Gripping O.D. in. 5.512 7.087 8.268 9.843 13.000
Jaw Change Time (3 Jaws) sec. 30 30 30 30 30

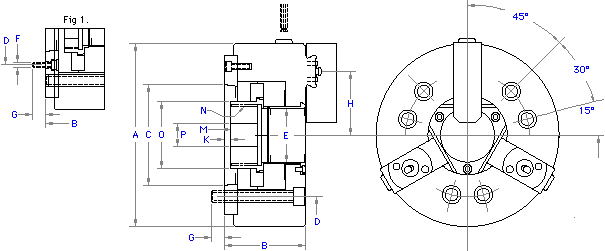

QUICK JAW-CHANGE CHUCK DIMENSIONS (Dimensions in Inches)

MODEL QB306A500 QB308A600 QB310A600 QB310A800 QB312A600 QB312A800
A 6.654 8.268 10.000 10.000 11.969 11.969
B 3.583 4.055 4.724 4.449 5.079 4.803
C 3.250 4.188 4.188 5.501 4.188 5.501
D 4.125 5.250 5.250 6.750 5.250 6.750
E 1.772 2.047 2.953 2.953 3.583 3.583
F 6xM10 6xM12 6xM12 6xM16 6xM12 6xM16
G 0.630 0.709 0.728 0.945 0.728 0.984
H max. 2.303 2.835 3.465 3.465 4.185 4.185
H min. 2.195 2.689 3.291 3.291 3.976 3.976
K max. 1.024 1.240 1.319 1.043 1.299 1.024
K min. 0.551 0.610 0.571 0.295 0.394 0.118
M 0.591 0.650 0.787 0.787 0.906 0.906
N max. M55x2.0 M60x2.0 M85x2.0 M85x2.0 M100x2.0 M100x2.0
O 2.362 2.598 3.701 3.701 4.252 4.252
P 0.787 1.181 1.772 1.772 1.969 1.969

QB310A06 and QB312A06 are referred to in Fig. 1.

Draw nut is supplied without thread.

SOFT TOP JAW DIMENSIONS (Dimensions in Inches)

MODEL 6" 6" 8" 8" 10" 10" 12" 12"
SB06BB SB06BB-040 SB08BB SB08BB-056 SB10BB SB10BB-060 SB12BB SB12BB-070
A 3.543 3.543 4.173 4.173 4.921 4.921 5.472 5.472
B 2.126 2.126 2.520 2.520 2.992 2.992 3.543 3.543
C 1.417 1.417 1.654 1.654 1.929 1.929 1.929 1.929
D 1.260 1.260 1.457 1.457 1.654 1.654 1.969 1.969
E 1.181 1.575 1.496 2.205 1.654 2.362 1.969 2.756
F 0.945 0.945 1.102 1.102 1.220 1.220 1.339 1.339
G 2.677 2.677 2.992 2.992 3.465 3.465 3.622 3.622
Min. Gripping OD 0.394 0.394 0.591 0.591 0.866 0.866 1.181 1.181



QB300 SERIES Quick Jaw-Change Chucks

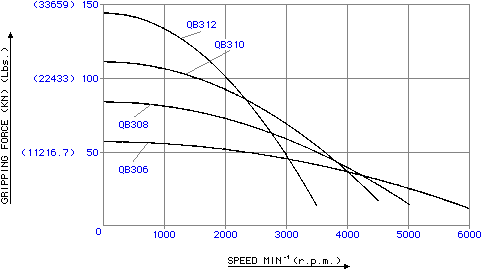

Gripping Characteristic Graph
