PUB200 SERIES

Thru-Hole High Precision Pull Back Chucks

Now with thru-hole!! Three-jaw pull lock style power chucks are ideal for finish machining applications. The radial and pull-back features allow high gripping forces, component length control as well as high repeatability of 0.0004". OD and ID grip versions are standard.

Special Features

  • High Accuracy for Finish Machining
  • Length Control for Efficient Operation
  • Pull Back Feature Is Ideal for Second Operations requiring Highest Precision.
  • Thru-Hole model.
  • Maintains More Gripping Forces at High RPMs Compared to Conventional Chucks
  • Optional Component Seating Confirmation
  • Optional Air and/or Coolant Blast

Model PUB200 Series Chucks are manufactured from high grade alloy steel. All sliding surfaces are hardened and ground to assure consistent accuracy and performance.

Lubrication nipple in chuck body. Body is sealed to ensure long life and extended lubrication frequency.

Mounting: Direct mounting to fit ASA B5.9 type A (interchangeable with DIN 55026).

Standard Equipment: Chuck assembled with adapter, chuck mounting bolts, soft top jaws and jaw mounting bolts with wrench, draw nut wrench.

SPECIFICATIONS

MODEL UNIT PUB-206 PUB-208 PUB-210
Thru Hole ** mm 39 66 72
Plunger Stroke mm 10 10 10
Jaw Stroke (Diameter) mm 5 5 5
Max. Draw Bar Pull Force kgf 1835 2549 3569
Max.Gripping Force kgf 5914 8158 10197
Max. Speed rpm 7000 6000 4500
Net Weight(1) kg 14.4 25.3 43.5
GD2 N.m 2 2.1 7.7 19.9
Matching Cylinder Y1020R Y1225R Y1225R
Matching Soft Jaw SB-PUB206 SB-PUB208 SB-PUB210
Gripping Range OD ømm 25-100 25-130 35-160

** Thru Hole diameter into chuck body for prescribed depth. Drawtube thru hole has smaller diameter.

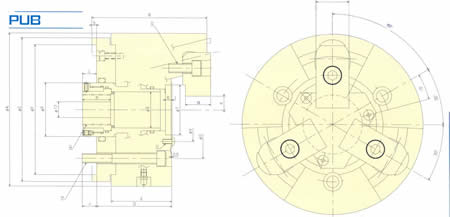

PUB200 SERIES DIMENSIONS (metric)

MODEL PUB-206 PUB-208 PUB-210
A 165 210 254
B 123.5 143 158
C 155 180 230
D 80.5 93 103
E 65 70 82
F (G7) 140 170 220
G 104.8 133.4 171.4
H 3-M10 3-M12 3-M16
K max. 16.25 16.25 21.25
K min. 13.75 13.75 18.75
L max. 20 20 24
L min. 10 10 14
M 27 31 35
N 30 35 40
O 3-M10 3-M12 3-M16
P 58 79 102
Q M33x1.5 M45x2.0 M65x2.0
R 30 29.5 35.5
S 39 50 72
T (H6) 54 66 90
U 3-M5 3-M6 3-M8
V 68 80 104
